Home / Ajax 22950.06.WH1 CombiProtect (White) for Motion and Glass Break Detection

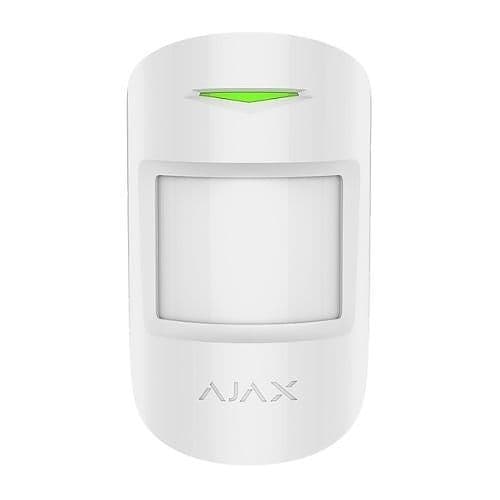

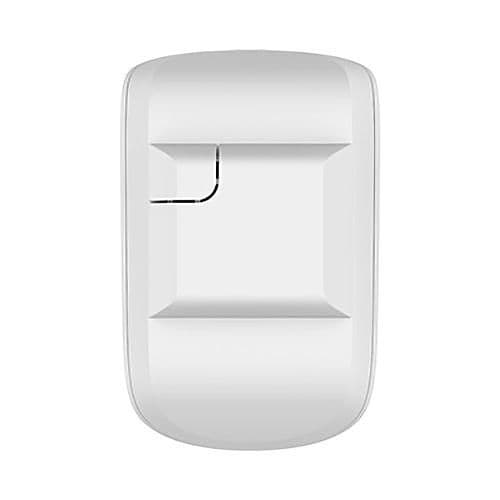

Ajax 22950.06.WH1 CombiProtect (White) for Motion and Glass Break Detection

Product Code: 22950.06.WH1

Smart motion detection
Glass break detector

Product Code: 22950.06.WH1

Smart motion detection
Glass break detector

Description

Product Overview

Wireless combined motion and glass break detector. The device helps to secure the room from intruders entering through doors and windows, and monitors the current state of the glass.

Main Features

Smart motion detection
Glass break detector

Information

Category : Glass Break Sensors, Intrusion, Products, Shock & Sound Sensors, Smart Home, Smart Motion & Perimeter Sensors, Wireless Intrusion

Specifications
Classification	Electro-optical combined radio channel security detector
Type of detector	Wireless
Installation method	Indoors
Compatibility	Operates with all Ajax hubs, range extenders, ocBridge Plus, uartBridge
Sensing element	PIR sensor, electret microphone
Alarm signal delivery time	0.15 s
Motion detection distance	Up to 12 m
Detection angles	Horizontal - 88.5° Vertical - 80°
Time for motion detection	From 0.3 to 2 m/s
Recommended installation height	2.4 m
Pet immunity	Weight - up to 20 kg Height - up to 50 cm
Break detection distance	Up to 9 m
Detection angle	180°
Sensitivity	Adjustable, 3 levels
Power supply	Battery: CR123A battery, 3 V
Battery life	Up to 5 years
Jeweller radio technology	Communication range with central unit - up to 1,200 m in an open space Two-way communication between devices Radio frequency bands: 866.0 - 866.5 MHz 868.0 - 868.6 MHz 868.7 - 869.2 MHz 905.0 - 926.5 MHz 915.85 - 926.5 MHz 921.0 - 922.0 MHz (Depends on the region of sale) Self-adjusting RF output power - up to 20 mW Block encryption based on AES algorithm Detector polling period - 12ˆ’300 s
Temperature sensor	Available
Operating temperature range	From -10°Ð¡ to +40°Ð¡
Permissible humidity	Up to 75%
Anti-sabotage	Protection against fraud Jamming detection Tamper-resistant
Remote setting and testing	+
Dimensions	110 x 65 x 50 mm
Weight	92 g
Warranty	Replacement and repair within 24 months of the date of sale. Batteries are not covered under warranty.
Complete set	CombiProtect combined motion and glass break detector SmartBracket mounting panel CR123A battery (pre-installed) Installation set User's guide

Reviews

Customer reviews

No reviews left yet

Write a review

No reviews have been left for this product, be the first to leave a review

Attributes

Brand:

AJAX

Product Code:

22950.06.WH1
