Key Features

• Emergency break glass
• Green color

Value Card Terminal

• Slim and flexible design with metal.
• Max. 5000 cards and 1000 users.
• Built-in card reader for M1 card reading.
• Outdoor application, supports IP65.
• Supports multiple authentication types: card, PIN.
• Supports AP mode and operation via mobile Web

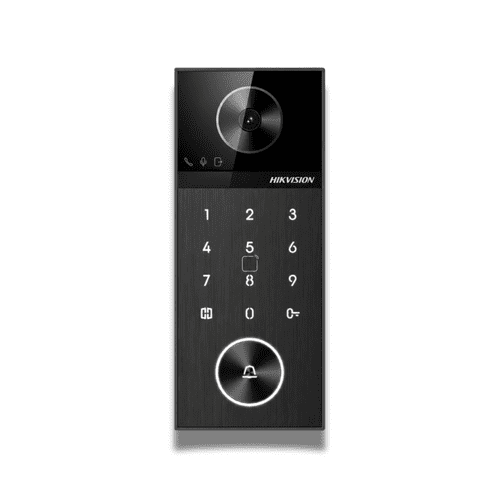

POE/Wifi Villa Door Station

• 2 MP camera with IR supplement
• One-touch button calling design for easier calls
• Built-in card reader module
• Standard PoE power supply
• IP65 protection level
• Convenient Hik-Connect APP Mobile Control

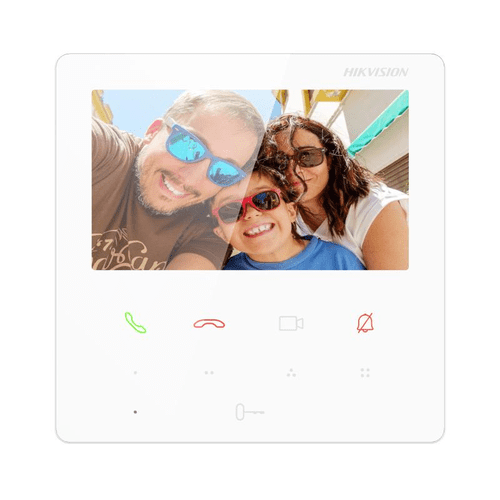

The DS-KH6110-WE1 brings professional-grade access control to your fingertips.

The DS-KH6110-WE1 brings professional-grade access control to your fingertips.

2-wire HD Indoor Station

• Excellent Product Design：7-inch touch screen with 1024*600 high resolution
• Excellent Product Design: 3 touch buttons, physically challenged friendly
• Easy to Use: DEC knobs configuration;
• Easy to Use: Plug & play, support different connection topologies
• Easy to Use: Supports Hik-Connect App (model with W)
• Easy to Use: Multiple indicators--Wi-Fi, power, mute, in use
• Easy to Use: Max. 4 custom virtual buttons
• View live view of door stations
• Support Professional Studio / Trade button function (Open doors automatically)
• Support Floor Call

Villa door station

• 4MP higher resolution with 150° viewing angle
• 2 locks control
• Multiple unlocking methods: Card, Bluetooth, Hik-Connect, indoor station
• Video recording and playback via Hik-Connect or PC web
• Standard IEEE802.3at PoE power supply

8 Series Indoor Station

• 7-inch IPS touch screen with 1024 × 600 resolution
• Excellent metal appearance design
• One physical button design for easier open the door
• Convenient Hik-Connect APP Mobile Control
• Receive calls, open the door and live view remotely
• Standard IEEE802.3at PoE power supply and power the lock
• Supports up to 16 indoor extensions linkage
• Elevator access control
• Supports surface and flush mounting
• Rich interfaces: alarm in, RS-485, relays, TF slot

8 Series Indoor station

• 7-inch IPS touch screen with 1024 × 600 resolution
• Excellent metal appearance design
• One physical button design for easier open the door
• Convenient Hik-Connect APP Mobile Control
• Receive calls, open the door and live view remotely
• Standard IEEE802.3at PoE power supply and power the lock
• Supports up to 16 indoor extensions linkage
• Elevator access control
• Supports surface and flush mounting
• Rich interfaces: alarm in, RS-485, relays, TF slot

Hikvision DS-K1T342MFWX-E1 face recognition terminal with fingerprint reader

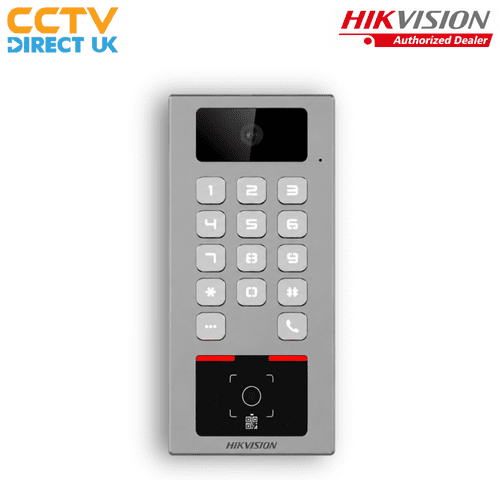

Access Control Terminal

• Manage access control and intercom functions in one device
• IP65 & IK09 protections, as well as increased stability with zinc alloy materials
• Supports multiple authentication methods (card, PIN, QR code, etc.)
• Remote control via the Hik-Connect mobile app
• Connects to external access controller via Wiegand protocol
• Intercom via SIP protocol. Supported SIP server: Brekeke, miniSipServer,FreePBX, Asterisk, 3CX, ELASTIX, and PBX ware
• RS-485 communication for connecting external card reader and calling elevator
• Supports AP mode
• Supports commiunication with smart phones via bluetooth to open the door
• Press calling button to call one of the following objects: management center, indoor station, specified indoor station, or Hik-Connect App
• Supports up to 256 GB SD card memory
• Supports PIN settings under platform mode and local mode
• Setting the priority of wired network and wireless network is available
• Individual QR code peripheral, which helps device supporting dynamic QR code authentication

Value Series Face Access Terminal

• Supports 4.5-inch LCD touch screen, 2 Mega pixel wide-angle lens, and built-in M1 card reading module
• Max.3000 faces capacity, and Max.3000 cards
• Face Recognition Distance: 0.3 m to 1.5 m; Duration ＜ 0.2 s/User; Accuracy rate ≥ 99%
• Supports face, card, PIN, and QR code authentication
• Two-way audio with client software, indoor station, and main station.
• Supports mobile web and PC web for configuration
• Powers supply by standard PoE and at the same time powers supply for door lock (12 VDC/1 A)

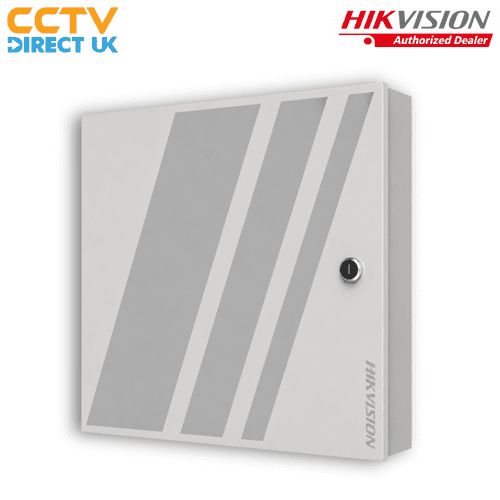

Access Controller

• Supports 1 door control. It can extend up to 62 DS-K2M002X access modules, and up to 125 doors can be controlled
• Downstream RS-485 redundancy wiring design to ensure communication stability. 5-ch downlink RS-485 interface supports two applications: 1. When 4-ch RS-485 communication, the 5th RS-485 can be used as a redundant application; 2. 4-ch RS-485 forms 2 groups of dual-bus loops with physical isolation. It is recommended that you do not have more than 16 access modules attached to each loop bus.
• Web configuration management. All configurations can be realized via web without software application
• Supports professional access control applications such as multi-door interlocking and anti-passback
• Supports backup battery access. Charging and discharging are available
• It has status indicators such as power supply, communication and operation, which is convenient for equipment health detection

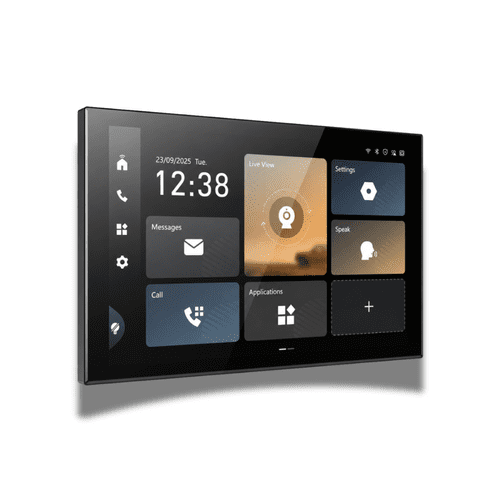

9 Series Indoor Stations

• Integrated Smart Security Unified security management on single screen
• Ultra Smooth Operation: • 4-core processor • Android 14 • Up to 4 GB RAM + 8 GB ROM
• Super HD Clarity: • 10.1" IPS touch display • 1920×1200 resolution
• Real Talk Anytime: • Dual microphones & speakers • Noise suppression and echo cancellation

​​​​​​​

Remote control pad

• 7-inch IPS touch screen with 1024 × 600 resolution.
• Self-define the function for the key button.
• Use for reception counter or security room easy to remote control.
• Cost-effective for traditional remote keyfob.

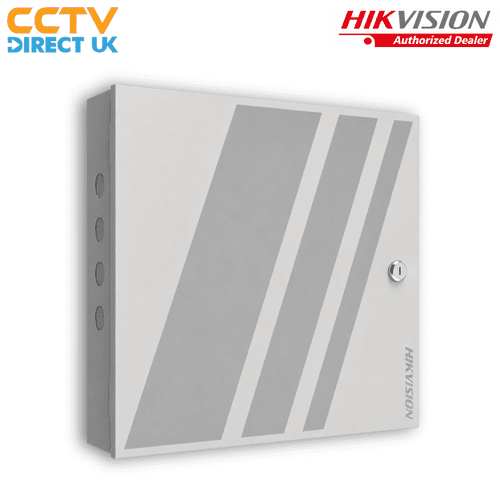

Access Controller

• Supports 2 door control. It can extend up to 62 DS-K2M002X access modules, and up to 126 doors can be controlled
• Downstream RS-485 redundancy wiring design to ensure communication stability. 5-ch downlink RS-485 interface supports two applications: 1. When 4-ch RS-485 communication, the 5th RS-485 can be used as a redundant application; 2. 4-ch RS-485 forms 2 groups of dual-bus loops with physical isolation. It is recommended that you do not have more than 16 access modules attached to each loop bus.
• Web configuration management. All configurations can be realized via web without software application
• Supports professional access control applications such as multi-door interlocking and anti-passback
• Supports backup battery access. Charging and discharging are available
• It has status indicators such as power supply, communication and operation, which is convenient for equipment health detection

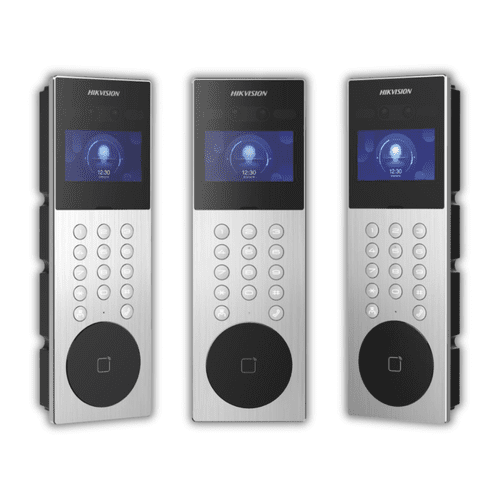

Facial Recognition Door station

• 4.3-inch colorful LCD screen with 800 × 480 resolution
• 2 × 2 MP wide-angle HD lens
• IP65 protection level
• Built-in M1 card reading module
• Multiple interfaces: RJ45, RS-485, alarm input, relay
• Convenient configuration via Web remotely
• Convenient unlock methods: face, cards, PIN code

9 Series Control Panel

• Unified Control Hub: • Lighting • Curtains • HVAC • Intercom • Alarms • Network cameras • Elevator access
• Ultra Smooth Operation: • 4-core processor • Android 14 • Up to 4 GB RAM + 16 GB ROM
• Super HD Clarity: • 10.1" IPS touch display • 1920×1200 resolution
• Real Talk Anytime: • Dual microphones & speakers • Noise suppression and echo cancellation

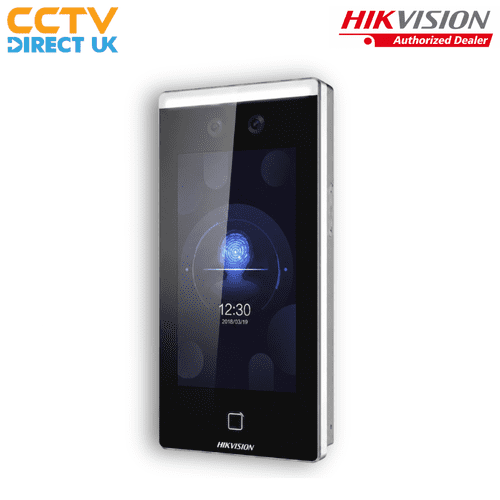

Pro Face Access Terminal

• Forced mask wearing alert: If the recognizing face does not wear a mask, the device will prompt a voice reminder. At the same time, the authentication or attendance will be failed
• 7-inch LCD touch screen, 2 Mega pixel wide-angle lens, built-in M1 card reading module
• Face recognition distance (without face mask): 0.3 m to 3 m, Duration ＜ 0.2 s/User, Accuracy rate ≥ 99%
• Max.6000 faces, Max.6000 cards
• Two-way audio with client software, indoor station, and mainstation
• Supports TCP/IP
• Configuration via the web client
• Supports ISAPI and ISUP5.0 protocol
• IP65

Access Controller

• Supports 8-door control. It is formed by 2 DS-K2M002X access modules, and one 4-doors access controller
• Access controller: downstream RS-485 redundancy wiring design to ensure communication stability. 5-ch downlink RS-485 interface supports two applications: 1. When 4-ch RS-485 communication, the 5th RS-485 can be used as a redundant application; 2. 4-ch RS-485 forms 2 groups of dual-bus loops with physical isolation. It is recommended that you do not have more than 16 access modules attached to each loop bus. Access Module: supports 8-ch RS-485 interface for card reader connecting
• Web configuration management. All configurations can be realized via web without software application
• Supports professional access control applications such as multi-door interlocking and anti-passback
• Supports backup battery access. Charging and discharging are available
• It has status indicators such as power supply, communication and operation, which is convenient for equipment health detection

Ultra Face Recognition Terminals

• Forced mask wearing alert: If the recognizing face does not wear a mask, the device will prompt a voice reminder. At the same time, the authentication or attendance will be failed
• 7-inch LCD touch screen, 2 Mega pixel wide-angle lens, built-in M1 card reading module
• Face recognition distance (without face mask): 0.3 m to 3 m, Duration ＜ 0.2 s/User, Accuracy rate ≥ 99%
• Max. 50,000 faces, Max. 50,000 cards
• Two-way audio with client software,indoor station, and main station
• Supports TCP/IP,Wi-Fi
• Configuration via the web client
• Supports ISAPI and ISUP5.0 protocol
• IP65
