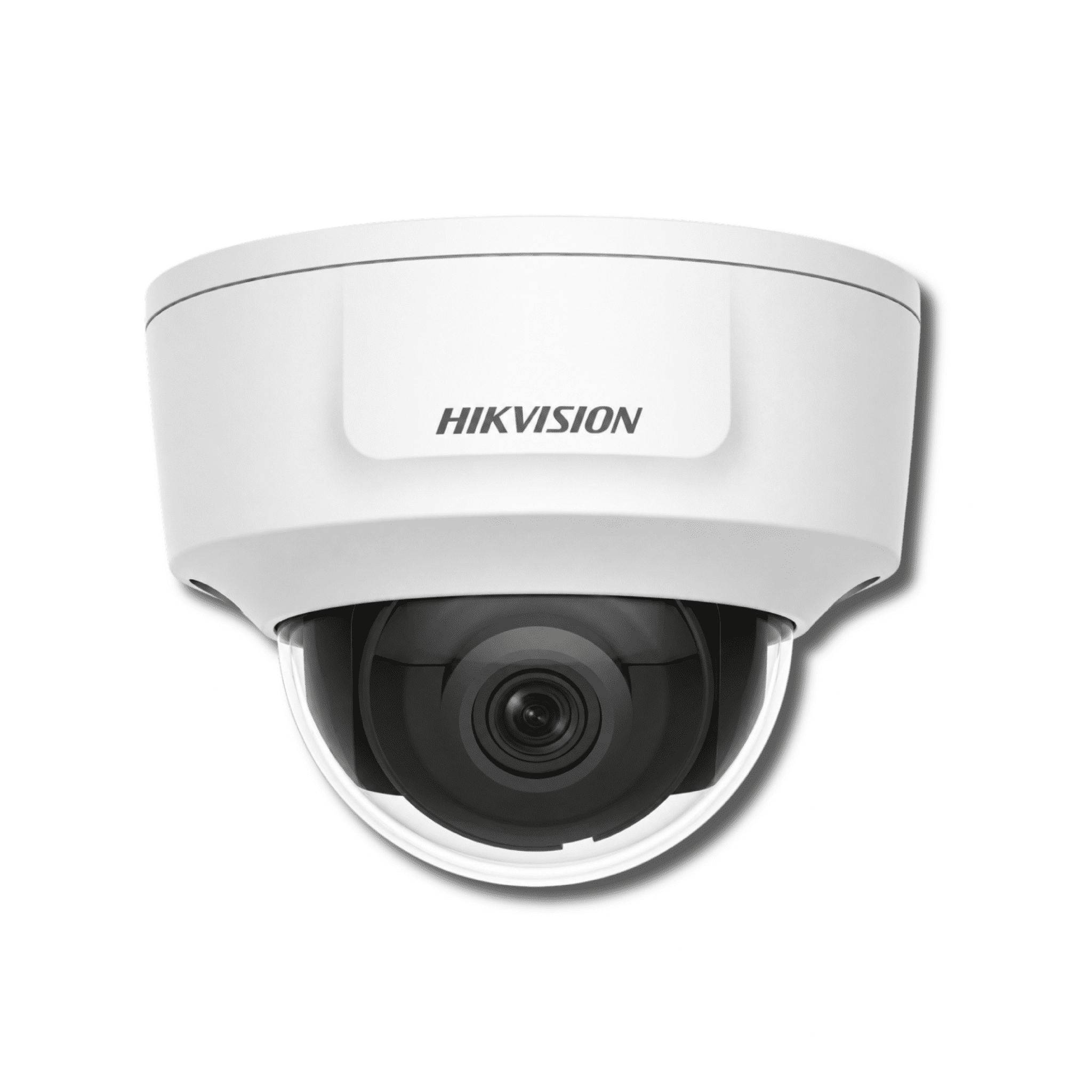

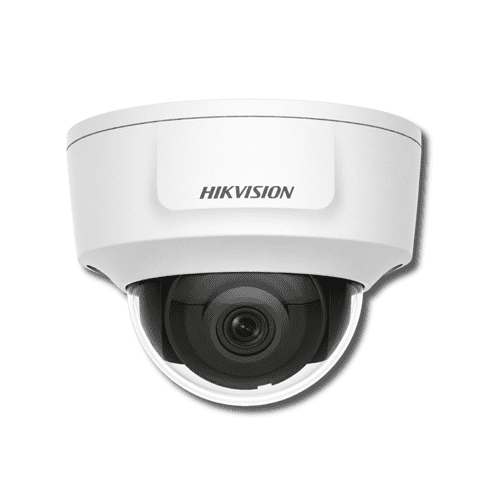

The Hikvision DS-2CD2126G2-IMS is a 2MP fixed dome IP camera with direct HDMI output, a wide 2.8mm lens, 30m infrared, 120dB WDR, PoE and IK10 protection.

The Hikvision DS-2CD2126G2-IMS is a professional 2MP fixed-dome network camera designed for installations requiring both network video and a direct local monitor connection. Its 1/2.8-inch progressive-scan CMOS sensor records at up to 1920 × 1080 Full HD resolution, with a maximum main-stream frame rate of 25fps in 50Hz mode or 30fps in 60Hz mode.

Its fixed 2.8mm F1.4 lens provides a wide 106° horizontal field of view, making it suitable for monitoring entrances, counters, reception areas, corridors, offices and other broad indoor spaces. Integrated smart infrared illumination provides visibility up to a manufacturer-stated 30 metres in darkness.

A dedicated Type-D HDMI 1.4 output allows the camera to provide a direct HD live view to a compatible monitor. This can be useful for reception desks, retail counters, security entrances and local public-view displays where a nearby live image is required without displaying the complete NVR interface.

The camera supports human and vehicle classification for compatible motion and perimeter events. Supported smart functions include line-crossing detection, intrusion detection, region-entrance detection, region-exit detection and face capture. Correct performance depends on camera position, target size, lighting and configuration.

For recording, the camera can connect to a compatible Hikvision NVR or video-management system and also supports compatible microSD, microSDHC and microSDXC cards up to 512GB. Power can be supplied using IEEE 802.3af PoE or a suitable 12V DC supply.

Its full-metal housing carries an IK10 vandal-resistance rating. Hikvision does not list an IP weatherproof rating for this model, so it should not be advertised as an IP67 outdoor camera.

Key Features

• 2MP Full HD video up to 1920 × 1080
• 1/2.8-inch progressive-scan CMOS sensor
• 2.8mm fixed lens with F1.4 aperture
• Wide 106° horizontal viewing angle
• Direct HDMI live-view output
• Smart infrared illumination up to 30m
• 120dB true wide dynamic range
• Human and vehicle target classification
• Line crossing and intrusion detection
• Region entrance and region exit detection
• Face-capture support
• H.265+ video compression
• Three video streams under supported settings
• microSD storage support up to 512GB
• External audio input and output
• One alarm input and one alarm output
• IEEE 802.3af PoE or 12V DC power
• Full-metal construction
• IK10 vandal resistance

These features are stated for the exact DS-2CD2126G2-IMS model.

Technical Specifications

Camera and Imaging

Lens

Infrared Illumination

Video

Direct HDMI Output

Important: The HDMI output can display at up to 1080p/60Hz, but the camera’s encoded main video stream remains limited to 25fps in 50Hz mode or 30fps in 60Hz mode.

Smart Events

• Motion detection with human and vehicle target selection
• Video-tampering alarm
• Exception detection
• Scene-change detection
• Line-crossing detection
• Intrusion detection
• Region-entrance detection
• Region-exit detection
• Face capture
• Recording and image-capture triggering
• Email, surveillance-centre and storage notifications
• Alarm-output triggering

Audio and Alarm Interfaces

External microphones, speakers and compatible powered audio equipment may be required. Do not advertise built-in audio.

Storage and Network

Power and Construction

All values in the technical tables are taken from the matching manufacturer specification.

DORI Reference Distances
