The Hikvision DS-3E1505P-EI is a professional smart-managed Gigabit PoE switch featuring 4 Gigabit PoE+ ports and 1 Gigabit uplink port, delivering up to 60W total PoE power. Designed for IP CCTV, access control, VoIP and network infrastructure, it includes advanced features such as VLAN support, PoE watchdog, STP/RSTP loop prevention, cable fault detection and long-range PoE transmission up to 300 metres.

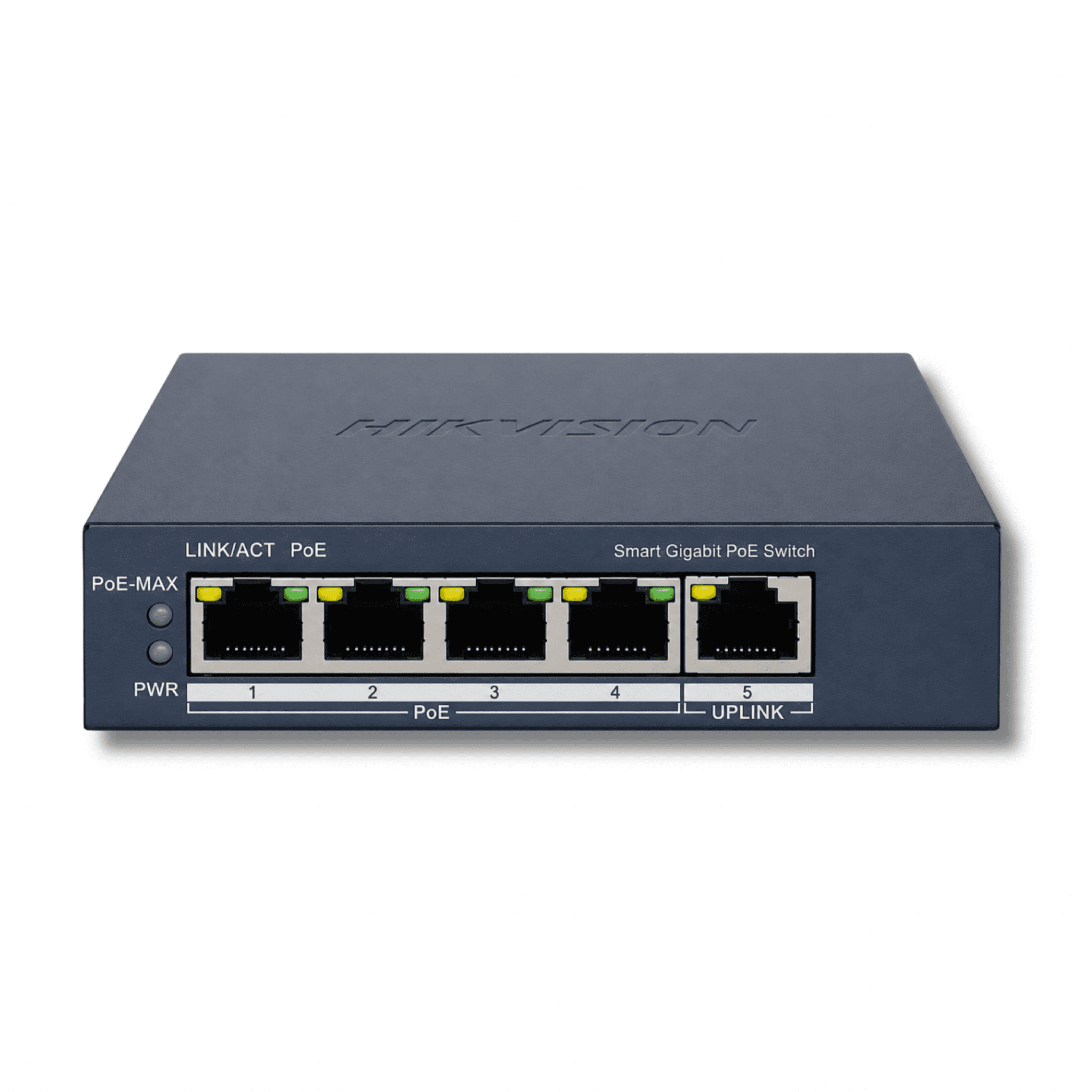

Hikvision DS-3E1505P-EI Smart Managed Gigabit PoE Switch

The Hikvision DS-3E1505P-EI is a high-performance smart-managed PoE switch engineered for professional surveillance and network installations. Equipped with 4 Gigabit PoE+ ports and 1 Gigabit uplink port, the switch provides reliable data transmission and power delivery for IP cameras, wireless access points, VoIP phones, intercom systems and other PoE-enabled devices.

Designed specifically for security and networking applications, the DS-3E1505P-EI offers a 60W total PoE power budget with up to 30W available per PoE port, supporting IEEE 802.3af and IEEE 802.3at standards. This makes it ideal for powering modern high-definition surveillance cameras and network devices without the need for separate power supplies.

Advanced management functions include 802.1Q VLAN support, PoE Watchdog, STP/RSTP loop prevention, port isolation, and cable fault detection, helping installers maintain a secure and reliable network environment. The intelligent PoE Watchdog automatically detects and reboots unresponsive cameras, reducing maintenance visits and improving system uptime.

The switch also supports long-range PoE transmission up to 300 metres, making it ideal for large buildings, warehouses, schools, retail sites and commercial CCTV installations where extended cable runs are required. Integrated 6kV surge protection provides additional protection against electrical spikes and lightning-related damage.

Its compact fanless metal housing ensures silent operation, high reliability and easy installation in offices, control rooms, comms cabinets and CCTV systems.

Key Features

✔ 4 × Gigabit PoE+ RJ45 Ports

✔ 1 × Gigabit RJ45 Uplink Port

✔ Smart Managed Network Switch

✔ Total PoE Power Budget Up To 60W

✔ Up To 30W Per PoE Port

✔ IEEE 802.3af / 802.3at Compliant

✔ 802.1Q VLAN Support

✔ PoE Watchdog Camera Recovery

✔ STP / RSTP Loop Prevention

✔ Cable Fault Detection

✔ Port Isolation Function

✔ Long Range PoE Transmission Up To 300m

✔ 6kV Surge Protection

✔ Fanless Silent Design

✔ Gigabit Network Performance

✔ Desktop Or Wall Mount Installation

✔ Ideal For CCTV & Security Networks

Technical Specifications

The Hikvision DS-3E1505P-EI is a 5-port Gigabit smart-managed PoE switch featuring 4 PoE+ ports, 1 Gigabit uplink port, a 60W PoE budget, VLAN support, PoE Watchdog, STP/RSTP loop prevention, cable fault detection and long-range PoE transmission up to 300 metres. Ideal for CCTV, security and business networking applications.
