Home / Hikvision DS-3E1510P-SI 8-Port Gigabit Smart Managed PoE Switch with 2 SFP Ports(Offer)

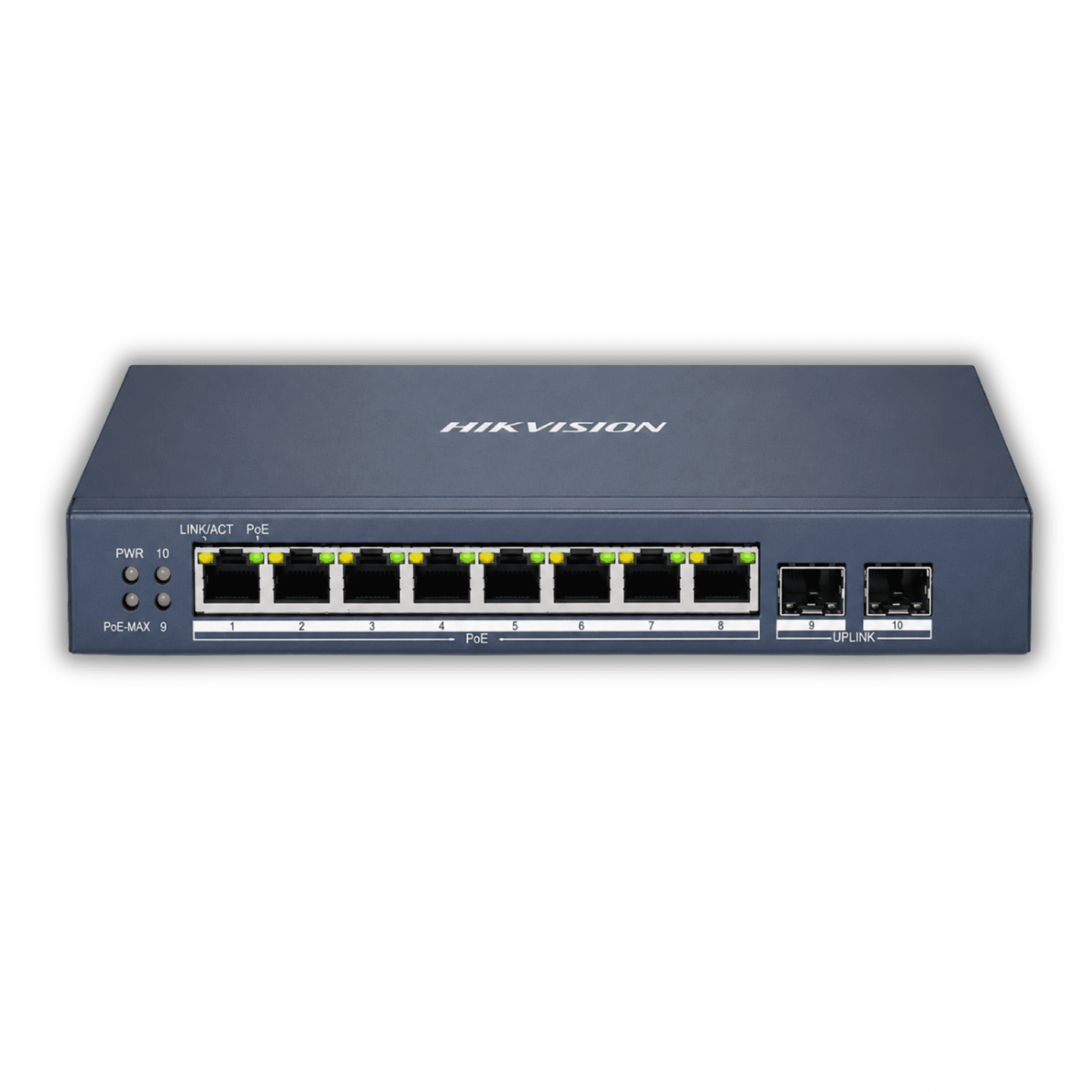

Hikvision DS-3E1510P-SI 8-Port Gigabit PoE Switch

Hikvision DS-3E1510P-SI 8-Port Gigabit Smart Managed PoE Switch with 2 SFP Ports(Offer)

Product Code: DS-3E1510P-SI

8 Port Gigabit Smart POE Switch

8 × gigabit PoE ports, and 2 × gigabit fiber optical ports.
IEEE 802.3at/af standard for PoE ports.
Network topology management, alarm push, network health monitor.
6 KV surge protection for PoE ports.
AF/AT camera can reach up to 300 m in extend mode.
PoE watchdog to auto detect and restart the cameras that do not respond.
Various layer 2 management protocols such as STP/RSTP, VLAN, link aggregation, SNMP, QoS and so on.

Product Code: DS-3E1510P-SI

8 Port Gigabit Smart POE Switch

8 × gigabit PoE ports, and 2 × gigabit fiber optical ports.
IEEE 802.3at/af standard for PoE ports.
Network topology management, alarm push, network health monitor.
6 KV surge protection for PoE ports.
AF/AT camera can reach up to 300 m in extend mode.
PoE watchdog to auto detect and restart the cameras that do not respond.
Various layer 2 management protocols such as STP/RSTP, VLAN, link aggregation, SNMP, QoS and so on.

Description

The Hikvision DS-3E1510P-SI is a smart managed 8-port Gigabit PoE switch designed for CCTV and IP network installations. It provides 8 Gigabit PoE ports for IP cameras and 2 Gigabit SFP fibre uplink ports for network expansion. With a 110W PoE power budget, PoE Watchdog, VLAN support, STP/RSTP, QoS, and 6kV surge protection, it is a strong choice for Hikvision IP camera systems, NVR installations, commercial CCTV networks, offices, shops, warehouses, and small business security systems.

The Hikvision DS-3E1510P-SI is a professional Hikvision PoE switch designed for reliable IP CCTV, security camera, and network installations. This 8 port Gigabit PoE switch is ideal for powering Hikvision IP cameras, PoE CCTV cameras, NVR systems, access control devices, and other compatible network equipment from one clean and efficient unit.

Built for CCTV installers and commercial security systems, the DS-3E1510P-SI provides 8 Gigabit PoE RJ45 ports for connecting IP cameras and 2 Gigabit SFP fibre uplink ports for network expansion. This makes it a strong choice for customers looking for an 8 port PoE switch with SFP, a CCTV PoE switch, or a reliable PoE switch for IP cameras in homes, shops, offices, warehouses, schools, and business premises.

With a total 110W PoE power budget and up to 30W per PoE port, this Hikvision CCTV switch can power multiple compatible PoE cameras without needing separate power supplies at each camera location. It supports IEEE 802.3af/at PoE, making it suitable for many standard IP camera and CCTV network setups.

The DS-3E1510P-SI is more than a basic switch. It is a smart managed PoE switch with useful network management features including VLAN, STP/RSTP, QoS, link aggregation, port isolation, storm control, SNMP, and port mirroring. These features make it suitable for professional CCTV networks where stability, control, and monitoring are important.

For CCTV reliability, this PoE watchdog switch can automatically detect and restart unresponsive connected cameras, helping reduce site visits and manual maintenance. Hikvision also lists up to 300m long-range transmission in extend mode, which can be useful for larger camera installations when suitable cable, camera, and network conditions are used.

The Hikvision DS-3E1510P-SI smart managed Gigabit PoE network switch is a strong option for anyone needing a dependable PoE switch for NVR, IP camera system, or managed CCTV network. With Gigabit performance, SFP uplink flexibility, 6kV surge protection, and a metal housing, it is built for stable CCTV and security network installations.

Key features

8-port Hikvision smart managed Gigabit PoE switch
8 × Gigabit PoE RJ45 ports
2 × Gigabit SFP fibre optical uplink ports
IEEE 802.3af/at PoE support
Up to 30W per PoE port
Total PoE power budget: 110W
Switching capacity: 20 Gbps
Packet forwarding rate: 14.88 Mpps
8K MAC address table
PoE Watchdog to restart unresponsive cameras
Up to 300m transmission in extend mode
6kV surge protection
VLAN support
STP/RSTP loop prevention
Link aggregation support
SNMP and QoS support
Port isolation and storm control
Suitable for Hikvision IP camera and NVR systems

Technical specification

Specification	Detail
Model	DS-3E1510P-SI
Product type	Smart Managed Gigabit PoE Switch
PoE ports	8 × Gigabit PoE RJ45 ports
Uplink ports	2 × Gigabit fibre optical/SFP ports
PoE standard	IEEE 802.3af / IEEE 802.3at
PoE ports supported	Ports 1 to 8
Max power per PoE port	30W
Total PoE power budget	110W
Switching capacity	20 Gbps
Packet forwarding rate	14.88 Mpps
MAC address table	8K
Internal cache	4.1 Mbits
Long range mode	Up to 300m on ports 1 to 8
Surge protection	6kV
PoE Watchdog	Supported on ports 1 to 8
VLAN	Supported
STP/RSTP	Supported
Link aggregation	Supported
SNMP	Supported
QoS	Supported
Port isolation	Supported
Storm control	Supported
Shell material	Metal
Installation	Desktop / wall-mounted
Power supply	48 VDC, 2.5A
Max power consumption	120W
Operating temperature	0°C to 40°C
Operating humidity	5% to 95%, non-condensing
Dimensions	217.6 × 27.8 × 108.55 mm

Attributes

Brand:

Hikvision

Product Code:

DS-3E1510P-SI

Reviews

Customer reviews

No reviews left yet

Write a review

No reviews have been left for this product, be the first to leave a review

Frequently Asked Questions

What is the Hikvision DS-3E1510P-SI?
The Hikvision DS-3E1510P-SI is an 8-port Gigabit smart managed PoE switch with 8 PoE RJ45 ports and 2 Gigabit SFP fibre uplink ports.

How many PoE ports does it have?
It has 8 Gigabit PoE ports.

Does it have SFP ports?
Yes. It has 2 Gigabit fibre optical/SFP uplink ports.

What is the PoE power budget?
The total PoE power budget is 110W, with up to 30W per PoE port.

Is it suitable for CCTV cameras?
Yes. It is designed for IP CCTV and security network use, including Hikvision IP cameras and NVR systems.

Does it support long cable runs?
Yes. Hikvision lists up to 300m transmission in extend mode, but real performance depends on camera model, cable quality, and installation conditions.

Does it have PoE Watchdog?
Yes. PoE Watchdog can detect and restart cameras that stop responding.

Is this a managed switch?
It is a smart managed switch. It supports management features such as VLAN, STP/RSTP, link aggregation, SNMP, QoS, port isolation, storm control, and network health monitoring.

Is this a 10-port switch?
Be careful with wording. It has 8 PoE RJ45 ports plus 2 SFP uplink ports. You can say “10-port total including SFP uplinks,” but the safest product title is 8-Port Gigabit Smart Managed PoE Switch with 2 SFP Ports.
