Home  /  Hikvision DS-KD9203-ME6 Metal Facial Recognition IP Video Intercom Door Station with 4.3-inch Screen
Hikvision DS-KD9203-ME6 Facial Recognition Door Station

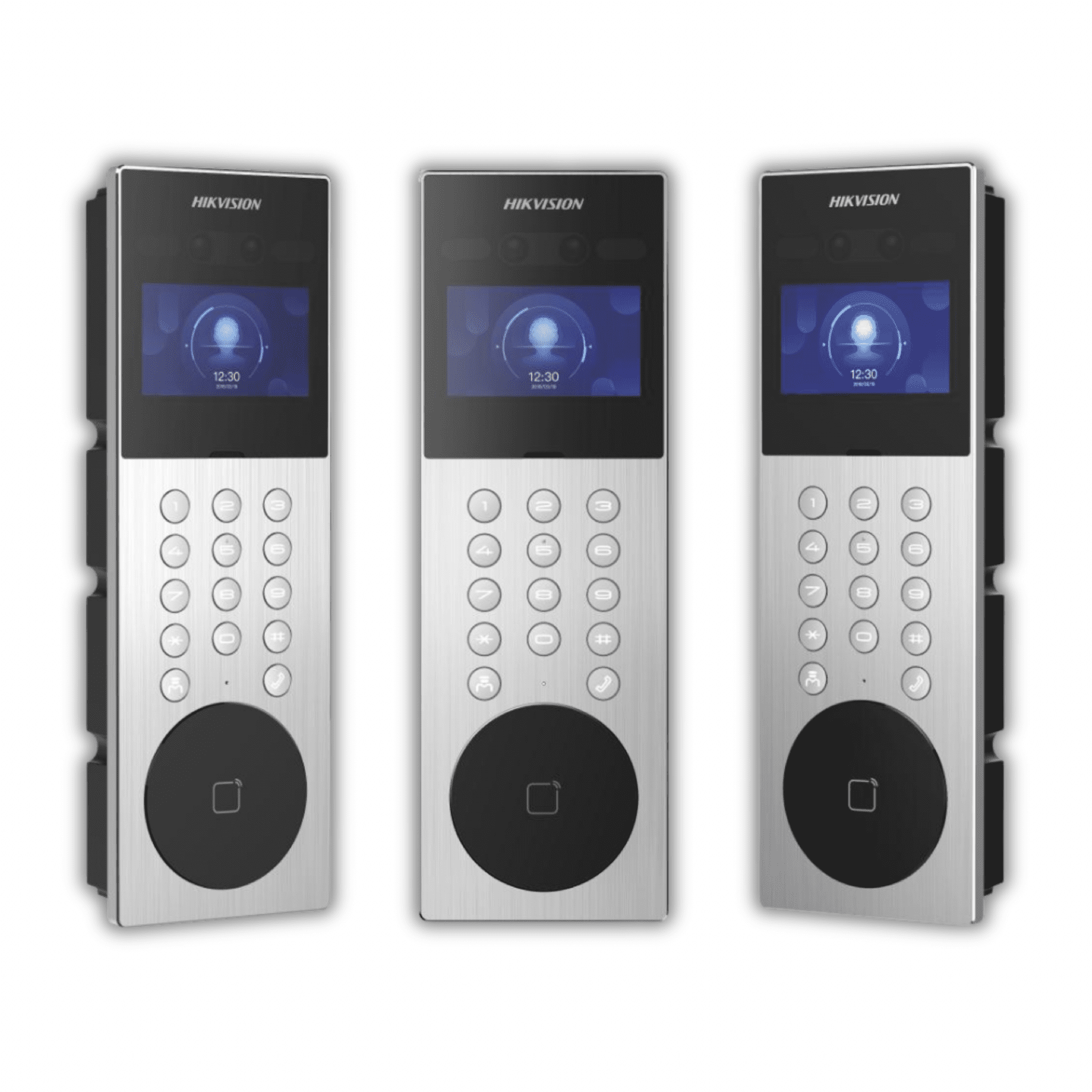

Hikvision DS-KD9203-ME6 Metal Facial Recognition IP Video Intercom Door Station with 4.3-inch Screen

Product Code: DS-KD9203-ME6

Facial Recognition Door station

  • 4.3-inch colorful LCD screen with 800 × 480 resolution
  • 2 × 2 MP wide-angle HD lens
  • IP65 protection level
  • Built-in M1 card reading module
  • Multiple interfaces: RJ45, RS-485, alarm input, relay
  • Convenient configuration via Web remotely
  • Convenient unlock methods: face, cards, PIN code

Product Code: DS-KD9203-ME6

Facial Recognition Door station

  • 4.3-inch colorful LCD screen with 800 × 480 resolution
  • 2 × 2 MP wide-angle HD lens
  • IP65 protection level
  • Built-in M1 card reading module
  • Multiple interfaces: RJ45, RS-485, alarm input, relay
  • Convenient configuration via Web remotely
  • Convenient unlock methods: face, cards, PIN code

Login to view prices Apply for a Trade Account
Chat with us on Whatsapp

The Hikvision DS-KD9203-ME6 is a metal IP video intercom door station with a 4.3-inch LCD screen, dual 2MP wide-angle HD cameras, facial recognition, M1 card reading, PIN code access, and IP65 outdoor protection. It is designed for apartments, offices, construction sites, and controlled building entrances.

The Hikvision DS-KD9203-ME6 is a premium IP video intercom door station designed for secure entrance communication and access control. It combines video intercom, face recognition, card access, PIN code entry, and physical button operation in one metal outdoor unit.

Its 4.3-inch colour LCD screen provides a clear local display, while the two 2MP wide-angle HD lenses help capture a wider view of the entrance area. The device supports main stream video up to 1080p at 30fps, with H.264, H.265, and MJPEG video compression.

For access control, the DS-KD9203-ME6 supports convenient unlocking by face, M1 card, and PIN code. The official specification lists capacity for up to 10,000 users, 5,000 faces, and 50,000 cards, making it suitable for multi-user residential and commercial sites.

The unit includes a built-in microphone and loudspeaker with noise suppression and echo cancellation for clearer two-way audio. It also supports multiple interfaces including RJ45 gigabit network port, RS-485, alarm input, exit button, tamper input, door contact input, and 2 relay lock outputs.

With an IP65 protective rating and operating temperature range of -30°C to 60°C, this door station is suitable for outdoor entrance installation when fitted correctly.

Key features

  • Metal facial recognition IP video intercom door station
  • 4.3-inch colour LCD screen
  • 800 × 480 screen resolution
  • 2 × 2MP wide-angle HD lenses
  • Main stream video up to 1080p at 30fps
  • Face, card, and PIN code unlocking
  • Built-in M1 card reading module
  • Up to 10,000 users, 5,000 faces, and 50,000 cards
  • Built-in microphone and loudspeaker
  • Noise suppression and echo cancellation
  • 1 × RJ45 10/100/1000 Mbps network interface
  • 2 × RS-485 interfaces
  • 4 × alarm inputs
  • 2 × relay lock outputs
  • IP65 outdoor protection rating
  • Flush mounting
  • Web remote configuration support

Technical specification

Specification Detail
Model DS-KD9203-ME6
Product type IP video intercom facial recognition door station
Screen size 4.3-inch
Screen type Colour LCD
Screen resolution 800 × 480
Camera 2 × 2MP HD cameras
Video resolution Main stream: 1080p@30fps, 720p@30fps
Sub stream VGA@25fps, VGA@30fps
WDR Digital WDR / 120 dB
Supplement light IR light, up to 3 m
Video compression H.264, H.265, MJPEG
Audio input 1 built-in omnidirectional microphone
Audio output 1 built-in loudspeaker
Audio features Noise suppression and echo cancellation
User capacity 10,000
Face capacity 5,000
Card capacity 50,000
Card reader Built-in M1 card reading module
Unlock methods Face, card, PIN code
Network interface 1 × RJ45 10/100/1000 Mbps
Protocols TCP/IP, RTSP, IPv6, ONVIF
Alarm input 4
Tamper input 1
Exit button input 1
Door contact input 1
RS-485 2 × RS-485 half-duplex
Lock control 2 relays, max. 30 VDC, 2 A
Protection level IP65
Installation Flush mounting
Power supply 12 VDC, 1.5 A
Power consumption ≤ 13 W
Operating temperature -30°C to 60°C
Operating humidity 10% to 90%, non-condensing
Dimensions 373 × 124 × 43.7 mm
Net weight 1.186 kg
Application environment Outdoor

  • Brand:
    Hikvision
  • Product Code:
    DS-KD9203-ME6
product review overlay image

Customer reviews

No reviews left yet
Write a review

No reviews have been left for this product, be the first to leave a review

What is the Hikvision DS-KD9203-ME6?
The DS-KD9203-ME6 is a Hikvision metal IP video intercom door station with facial recognition, a 4.3-inch screen, dual 2MP HD cameras, M1 card reader, PIN code access, and IP65 outdoor protection.

Does the DS-KD9203-ME6 support face recognition?
Yes. It supports face recognition and has a listed face capacity of up to 5,000 faces.

Does it have a card reader?
Yes. It has a built-in M1 card reading module and supports up to 50,000 cards.

Does it support PIN code unlocking?
Yes. Hikvision lists face, card, and PIN code as supported unlock methods.

Is it suitable for outdoor use?
Yes. It has an IP65 protection rating and an operating temperature range from -30°C to 60°C.

Does it have Wi-Fi?
No. The official datasheet lists Wi-Fi as not supported, so this should be sold as a wired IP/network door station.

Does it have 4G?
No. The official datasheet lists 3G/4G as not supported.
