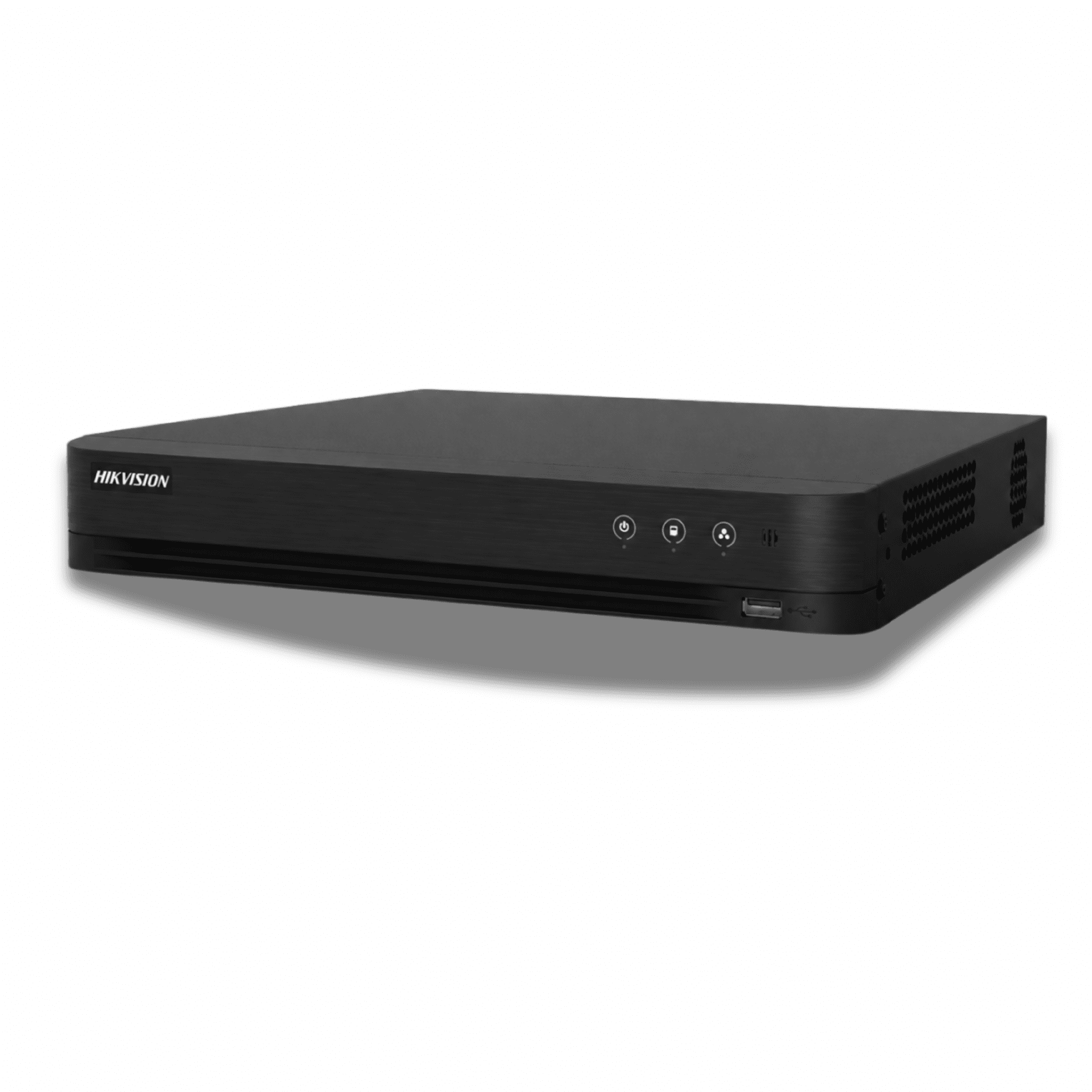

The Hikvision iDS-7208HQHI-K2/4S(B) is an 8-channel 1080p Turbo HD AcuSense DVR for CCTV systems using compatible HDTVI, AHD, CVI, CVBS and IP cameras. It supports H.265 Pro+ compression, human and vehicle false alarm reduction, 2 SATA HDD bays, HDMI/VGA output up to 1080p, and IP camera expansion up to 12 network cameras in enhanced IP mode.

The Hikvision iDS-7208HQHI-K2/4S(B) is a reliable 8-channel Hikvision AcuSense DVR designed for homes, shops, offices, warehouses, restaurants, schools and small business CCTV installations. This 8CH Turbo HD DVR is suitable for customers who need a professional Hikvision CCTV recorder for compatible analogue HD cameras while also keeping support for selected IP camera expansion.

This Hikvision 8 channel DVR supports 5 signal adaptive input, including HDTVI, AHD, CVI, CVBS and IP, making it useful for CCTV upgrades where older analogue cameras and newer HD cameras may be used in the same system. It has 8 BNC analogue video inputs and supports compatible IP cameras up to 6MP resolution, with enhanced IP mode allowing up to 12 network cameras, each up to 4 Mbps. This should be described carefully: it is still mainly an 8-channel DVR, not a 12-channel DVR.

Built with Hikvision AcuSense technology, the iDS-7208HQHI-K2/4S(B) helps reduce false alarms by using human and vehicle target classification based on deep learning. Motion Detection 2.0 is enabled by default for all analogue channels, and quick search by object or event type is supported. This makes it a strong choice for customers looking for an AcuSense DVR, smart CCTV recorder, or 8-channel security DVR that can focus alerts on more relevant movement events.

For storage efficiency, this Hikvision Turbo HD DVR supports H.265 Pro+, H.265 Pro, H.265, H.264+ and H.264 video compression. The official Hikvision listing states encoding ability up to 1080p at 15fps, so do not advertise this model as a full-frame 4K or 8MP recorder.

The recorder includes 2 SATA interfaces, with Hikvision listing support for up to 10TB per HDD. A hard drive is not included by default unless your product bundle clearly includes one. HDMI and VGA output support up to 1920 × 1080 at 60Hz, so do not list this model as having 4K HDMI output.

Key features

• 8-channel Hikvision Turbo HD AcuSense DVR
• 8 × BNC analogue camera inputs
• 5 signal adaptive input: HDTVI, AHD, CVI, CVBS and IP
• Human and vehicle false alarm reduction based on deep learning
• Motion Detection 2.0 on all analogue channels
• Perimeter protection human/vehicle analysis up to 4 channels
• 1-channel human face capture using HD analogue camera
• H.265 Pro+, H.265 Pro, H.265, H.264+ and H.264 compression
• Encoding ability up to 1080p at 15fps
• IP camera support up to 6MP resolution
• Enhanced IP mode supports up to 12 network cameras
• HDMI/VGA output up to 1920 × 1080 at 60Hz
• 2 SATA HDD interfaces
• Up to 10TB capacity per HDD listed by Hikvision
• Hik-Connect and ONVIF network protocol support
• 1 × RJ45 10/100 Mbps Ethernet interface
• 2 × USB 2.0 ports
• RS-485 half-duplex interface
• No alarm input/output listed
