The HiLook NS-0508D is a compact 8-port Gigabit unmanaged network switch designed for fast and reliable network expansion. Featuring eight 10/100/1000Mbps RJ45 ports, plug-and-play operation, auto MDI/MDIX support and a compact desktop design, it provides a simple and cost-effective networking solution for CCTV systems, offices, retail stores and home networks.

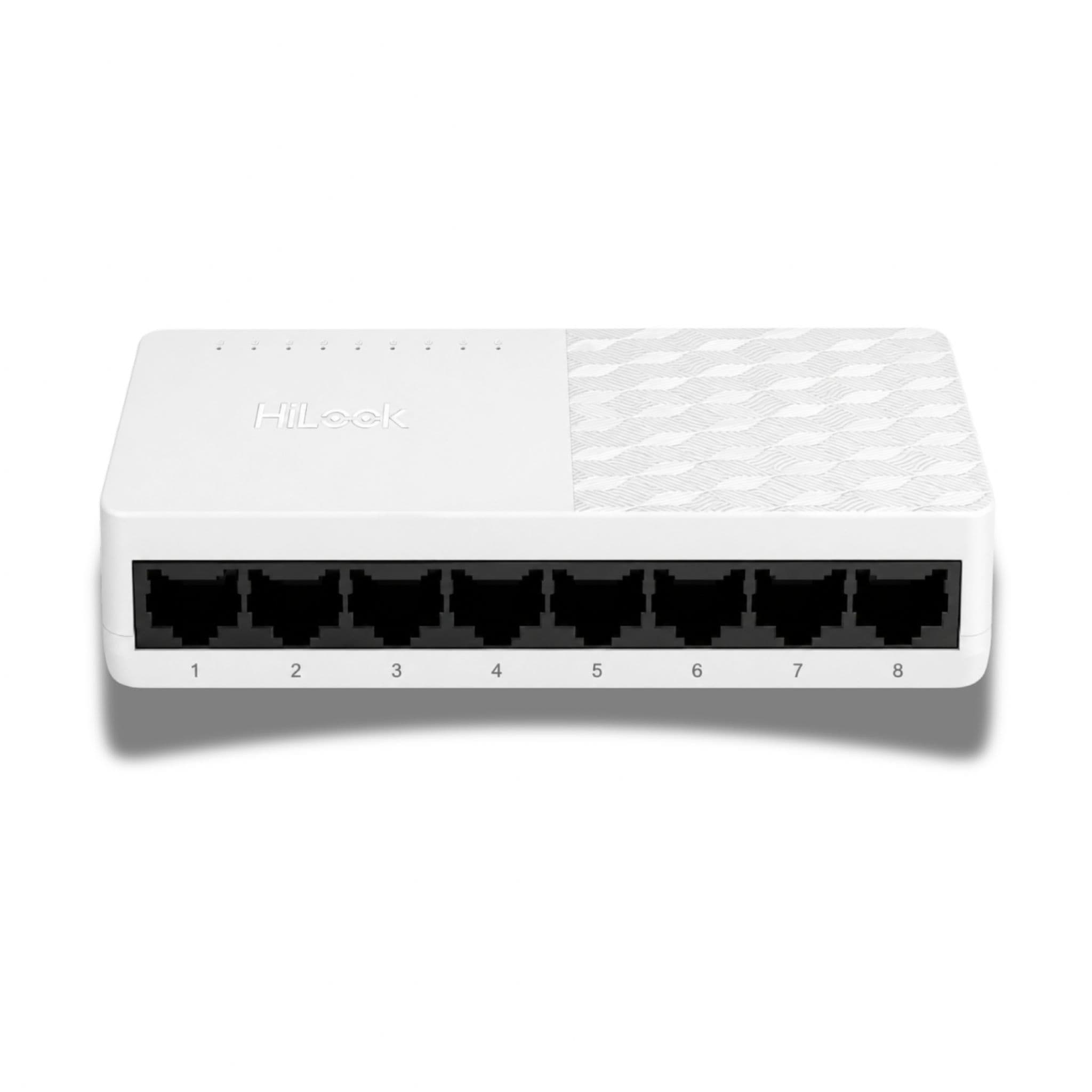

HiLook NS-0508D 8 Port Gigabit Unmanaged Desktop Network Switch

The HiLook NS-0508D is a high-performance 8-port Gigabit unmanaged switch designed to provide reliable network connectivity for IP CCTV systems, office networks and small business environments. Equipped with eight Gigabit Ethernet ports and a 16Gbps switching capacity, the switch ensures stable and efficient data transmission across connected devices.

Its compact design, plug-and-play functionality and support for desktop or wall-mounted installation make it an ideal networking solution for both professional installers and everyday users.

Key Features

• 8 × 10/100/1000 Mbps Gigabit RJ45 Ports

• 16 Gbps Switching Capacity

• 11.90 Mpps Packet Forwarding Rate

• Plug-and-Play Operation

• Supports Auto MDI/MDIX

• Store-and-Forward Switching Technology

• MAC Address Auto-Learning and Aging

• 4K MAC Address Table

• 1.5 Mbit Internal Cache

• Compact Desktop Design

• Wall-Mount Installation Support

• Fanless Silent Operation

• Low Power Consumption

High-Speed Gigabit Connectivity

The NS-0508D features eight Gigabit Ethernet ports capable of delivering speeds up to 1000Mbps. This allows smooth transmission of high-definition CCTV footage, faster file transfers and reliable connectivity for network devices.

Ideal for CCTV and IP Surveillance Systems

Designed to support modern IP security systems, the switch provides stable connectivity between network cameras, NVRs and routers. The Gigabit bandwidth helps maintain consistent video transmission without bottlenecks.

Plug-and-Play Simplicity

No software configuration or technical setup is required. Simply connect your devices and the switch automatically detects and manages network traffic, making installation quick and hassle-free.

Reliable Store-and-Forward Switching

The switch uses store-and-forward technology to inspect data packets before forwarding them, helping reduce transmission errors and improve network stability.

Compact and Flexible Installation

Its slim and lightweight design makes it suitable for installation in offices, homes, retail environments, CCTV cabinets and communication cupboards. The switch can be placed on a desk or mounted on a wall depending on installation requirements.

Intelligent Network Management

Supporting MAC address auto-learning and aging, the NS-0508D automatically manages connected devices to optimise network performance and improve communication efficiency.

Suitable Applications

• CCTV Systems

• IP Camera Networks

• Small Business Networks

• Office Networks

• Retail Stores

• Home Networking

• Schools

• Reception Areas

• Broadband Distribution

• Network Expansion Projects

Technical Specifications

• Model: NS-0508D

• Ports: 8 × Gigabit RJ45 Ports

• Port Speed: 10/100/1000 Mbps

• Switching Capacity: 16 Gbps

• Packet Forwarding Rate: 11.90 Mpps

• MAC Address Table: 4K

• Internal Cache: 1.5 Mbits

• Switching Method: Store-and-Forward

• MDI/MDIX: Supported

• Power Supply: 5V DC, 1A

• Installation Mode: Desktop Mounted

• Housing Material: ABS Plastic

• Operating Temperature: 0°C to 40°C

• Storage Temperature: -40°C to 85°C

• Operating Humidity: 5% to 95% (Non-Condensing)

• Dimensions: 124 × 61 × 25 mm

• Net Weight: 0.093 kg

Why Choose the HiLook NS-0508D?

The HiLook NS-0508D offers reliable Gigabit networking performance in a compact and affordable package. With eight high-speed ports, plug-and-play operation, robust switching performance and flexible installation options, it is an excellent choice for CCTV installations, office networks and small business environments requiring dependable network expansion.
